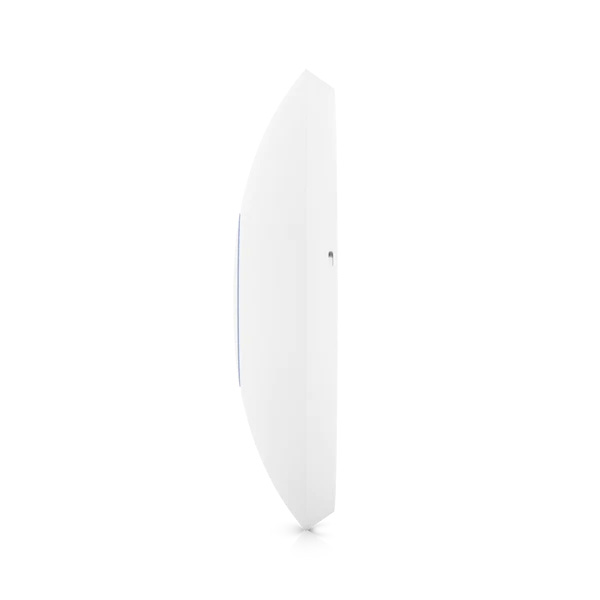

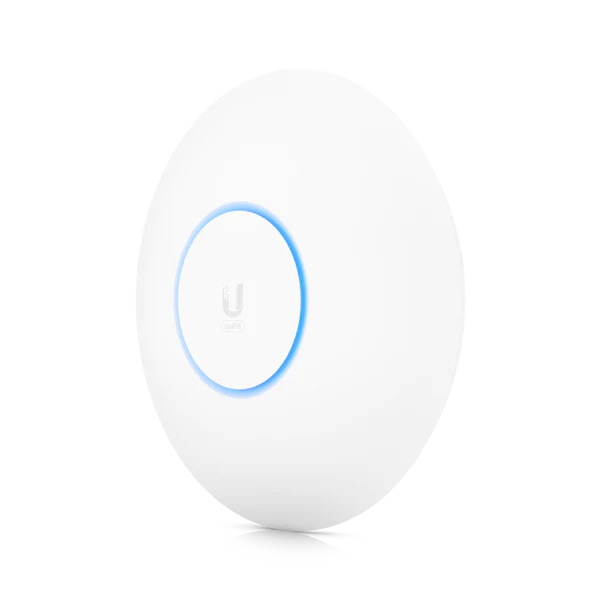

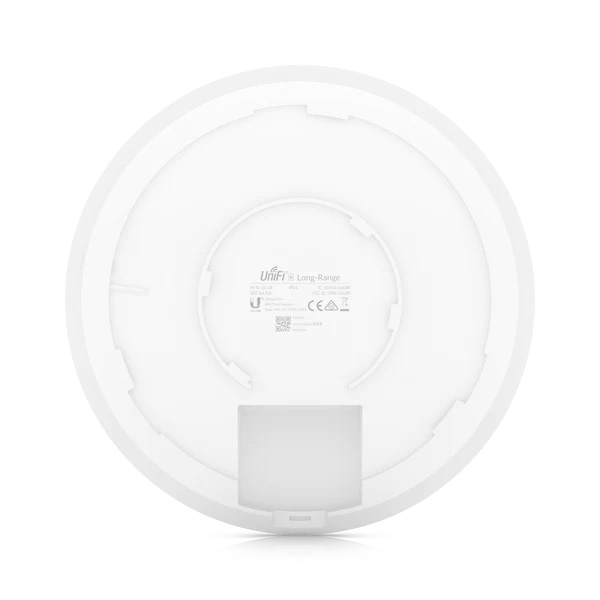

Ubiquiti UniFi 6 Long-Range Access Point (U6-LR)
Buy Ubiquiti UniFi 6 Long-Range Access Point (U6-LR), Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service
Product details
- High-efficiency 4x4 WiFi 6 (802.11ax)
- 5 GHz band (4x4 MU-MIMO and OFDMA) with 2.4 Gbps throughput rate
- 2.4 GHz band (4x4 MIMO) with 600 Mbps throughput rate
- Powered by 802.3at PoE (PoE injector sold separately)
- IP54-rated water and dust protection for indoor/outdoor mounting versatility
The Access Point WiFi 6 Long-range (U6 LR) is a high-performance access point that brings powerful, four-stream WiFi 6 coverage to enterprise networks. The U6 LR can reach an aggregate throughput rate up to 3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (4x4 MIMO) bands. It also has a sideways, down-tilted antenna pattern to expand its coverage area. The water and dust-resistant U6 LR can be mounted either indoors or outside, blending seamlessly into virtually any environment so you'll never have to disrupt your space's aesthetic to enjoy excellent wireless coverage. The U6 LR simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients. It can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |||||
|---|---|---|---|---|---|
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89") | ||||
| Weight | Without Mount: 800 g (1.76 lb) | ||||
| Enclosure Material | Plastic | ||||
| Mount Material | SGCC Steel | ||||
| Weatherproofing | IP54 | ||||
| Hardware | |||||
| Processor Specs | Dual-Core® Cortex® A53 at 1.35 GHz | ||||
| Memory Information | 512 MB | ||||
| Management Interface | Ethernet Bluetooth Low Energy 5.0 | ||||

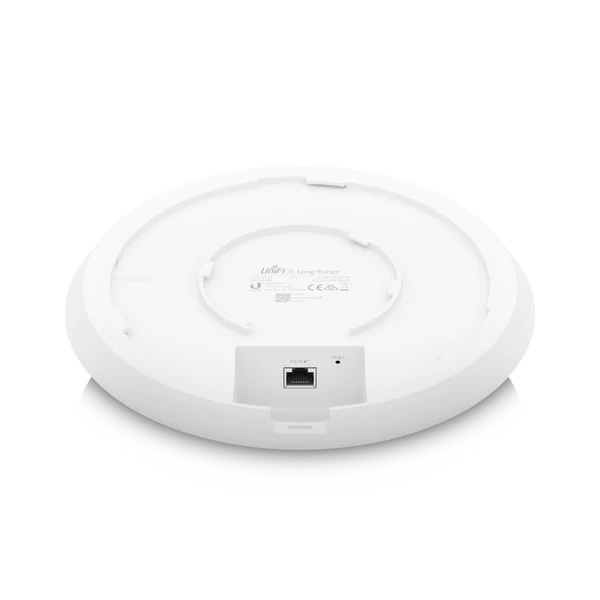

| Networking Interface | (1) 1 Gbps Ethernet RJ45 | ||||
| Button | Factory Reset | ||||
| LED | RGB | ||||
| Power Method | PoE+, Passive PoE (48V) | ||||
| Power Supply | UAP PoE Switch | ||||
| Supported Voltage Range | 44 to 57VDC | ||||
| Max. Power Consumption | 16.5W | ||||
| Max. TX Power |
| ||||
| MIMO |
| ||||
| Throughput Speeds |
| ||||
| Antenna Gain |
| ||||

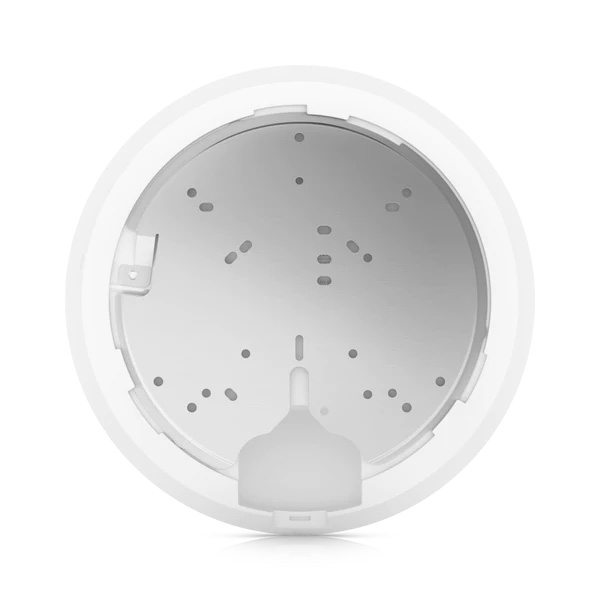

| Mounting | Wall/Ceiling (Kits Included) | ||||
| Operating Temperature | -30 to 60° C (-22 to 140° F) | ||||
| Operating Humidity | 5 - 95% Noncondensing | ||||
| Certifications | CE, FCC, IC | ||||
| Software | |||||
| Wi-Fi Standards | 802.11a/b/g | ||||
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions | ||||
| BSSID | 8 per Radio | ||||
| VLAN | 802.1Q | ||||
| Advanced QoS | Per-User Rate Limiting | ||||
| Guest Traffic Isolation | Supported | ||||
| Concurrent Clients | 300+ | ||||
| Supported Data Rates (Mbps) | |||||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | ||||
| 802.11b | 1, 2, 5.5, 11 Mbps | ||||
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | ||||
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) | ||||
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) | ||||
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | ||||
