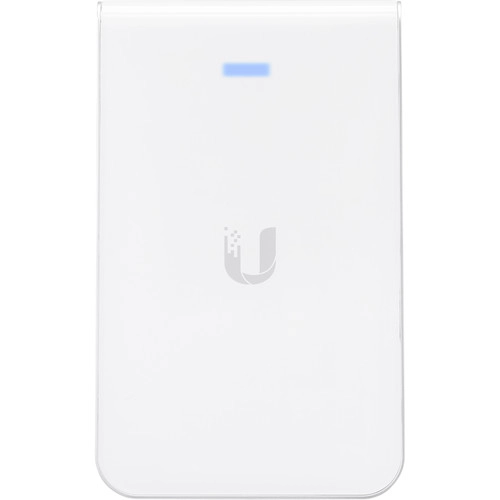

Ubiquiti UniFi AC UAP-AC-IW 802.11ac 1.14 Gbit/s Wireless Access Point

Product details

The Access Point AC In-wall (UAP AC IW) is a dual-band, 802.11ac WiFi access point that can be plugged into any standard wall outlet. The UAP AC IW can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands, and it has an impressively long transmission range up to 100 meters (328 feet). This access point is also equipped with (3) GbE RJ45 ports, including (1) for 802.3af PoE input, (1) for 48V 802.3 af PoE output, and (1) dedicated to data transmission. The UAP AC IW is the perfect plug-and-play access point for those looking for an easy-to-use, inconspicuous way to broaden their wireless coverage. It can be set up in minutes and fully managed with the UAP Network web application or mobile app.


Features:

• 802.11ac Wave 1 WiFi technology
• 5 GHz band with an 867 Mbps throughput rate
• 2.4 GHz band with a 300 Mbps throughput rate
• Signal transmission range up to 100 meters (328 feet)

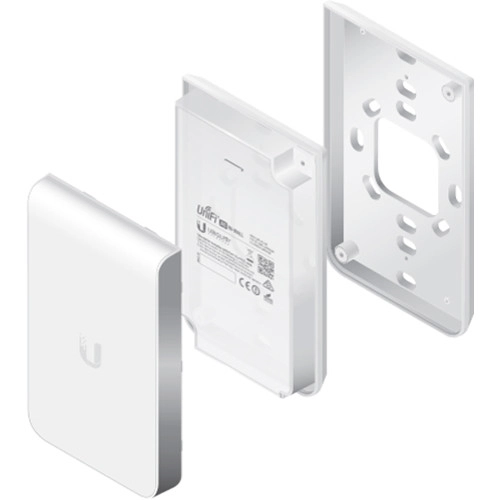

• Can be mounted in a 1-gang electrical wall box

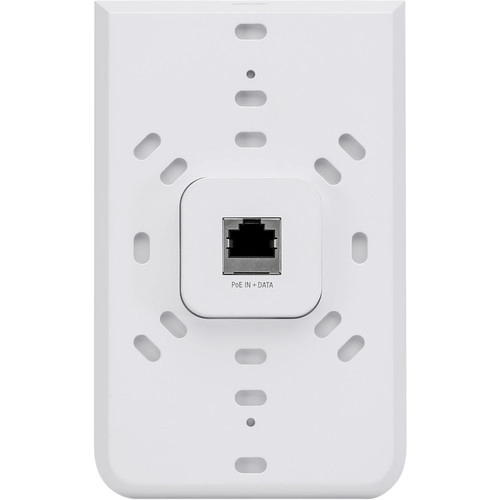

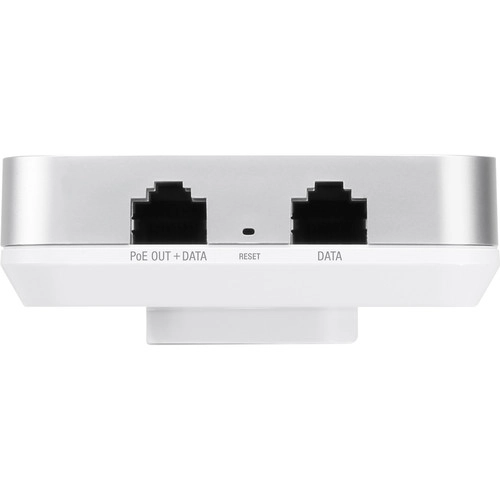

• (3) GbE RJ45 ports, including:
• (1) for data + 802.3at PoE+ input
• (1) for data + 48V 802.3af PoE output*
•


  Mechanical
  Dimensions	139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
  Weight	200 g (6.43 oz)
  Networking Interface	(3) 10/100/1000 Ethernet Ports
  Buttons	Reset
  Power Method	802.3at PoE+ Supported
  Power Supply	UAP PoE Switch (Not Included)
  Power Save	Supported
  PoE Out	48V Pass-Through (Pins 1, 2+; 3, 6-)
  Maximum Power Consumption with PoE Passthrough	7W 19W*
  Maximum TX Power 2.4 GHz 5 GHz	20 dBm 20 dBm
  Antennas 2.4 GHz 5 GHz	(1) Dual-Band Antenna, Single-Polarity 1 dBi 2 dBi
  Wi-Fi Standards	802.11 a/b/g/n/r/k/v/ac
  Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  BSSID	Up to 8 per Radio
  Mounting	1-Gang Electrical Wall Box (Not Included)
  Operating Temperature	-10 to 50° C (14 to 122° F)
  Operating Humidity	5 to 95% Noncondensing
  Certifications	CE, FCC, IC
  Advanced Traffic Management
  VLAN	802.1Q
  Advanced QoS	Per-User Rate Limiting
  Guest Traffic Isolation	Supported
  WMM	Voice, Video, Best Effort, and Background
  Concurrent Clients	250
  Supported Data Rates (Mbps)
  Standard	Data Rates
  802.11ac	6.5 Mbps to 867 Mbps (MCS0 -MCS9 NSS1/2, VHT 20/40/80)
  802.11n	6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
  802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11b	1, 2, 5.5, 11 Mbps
