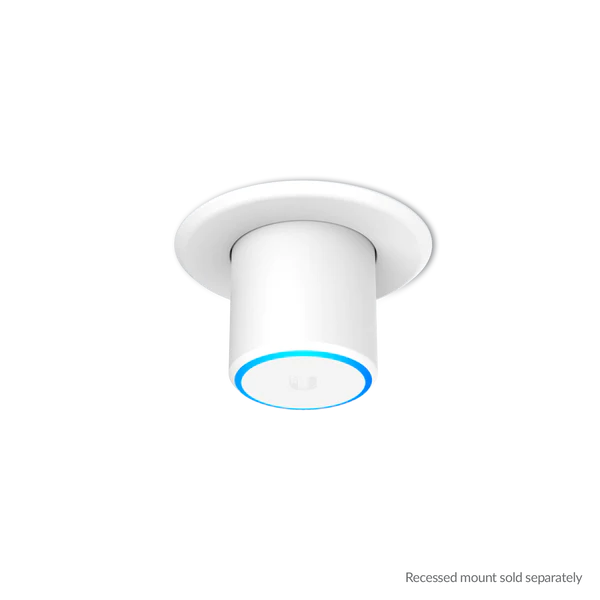

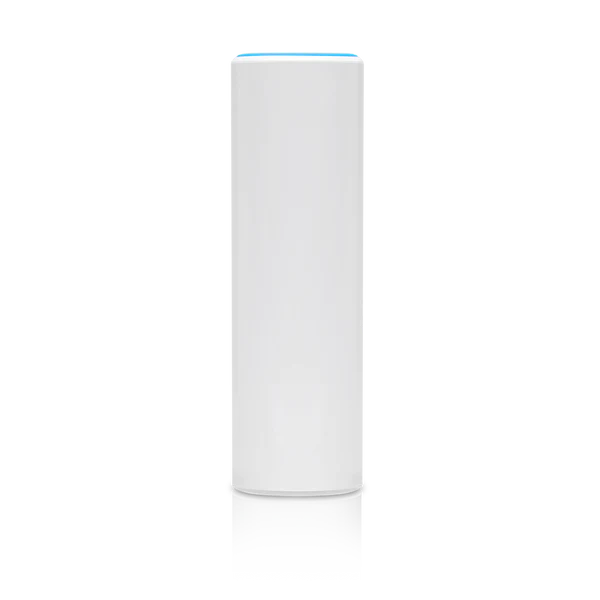

Ubiquiti UniFi Acess Point UAP-FLEX HD, 4×4 MU-MIMO Technology
Ubiquiti UniFi Acess Point UAP-FLEX HD, 4×4 MU-MIMO Technology -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| WiFi Standard | 802.11ac Wave 2 |
| 5 GHz Throughput | 1.733 Gbps |
| 2.4 GHz Throughput | 300 Mbps |
| MIMO Technology | 4×4 MU-MIMO (5 GHz), 2×2 MIMO (2.4 GHz) |
| Interface | 1x 10/100/1000 Ethernet Port |
Product details
- 802.11ac Wave 2 WiFi technology
- 5 GHz (802.11ac, 4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 2.4 GHz (802.11n, 2x2 MIMO) band with a 300 Mbps throughput rate

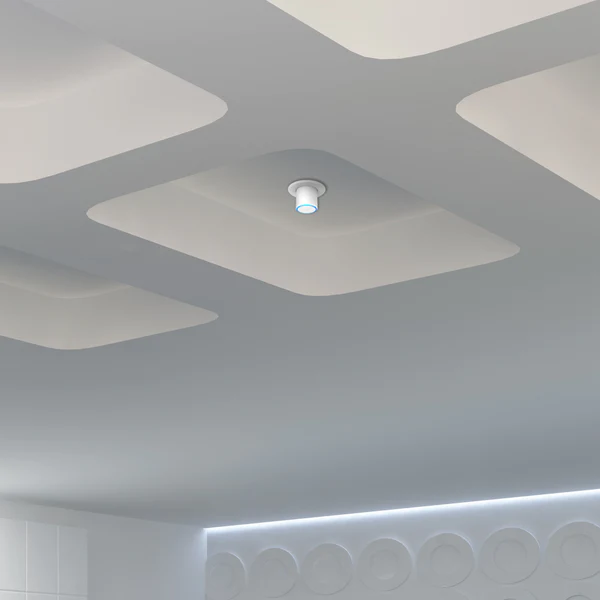

- Can be deployed inside or outdoors
- Included tabletop, wall, and pole mounting brackets
The Access Point FlexHD (UAP FlexHD) is a 802.11ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (802.11n, 2x2 MIMO) bands. The UAP FlexHD's narrow form allows you to stage it anywhere indoors where you need stronger wireless connectivity. You can also use the included wall or pole-mounting brackets to deploy the UAP FlexHD outdoors and expand coverage throughout your entire residence or business. The UAP FlexHD can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | Ø 48.50 x 159.49 mm (1.90 x 6.28") |
| Weight | 315 g (0.69 lb) |

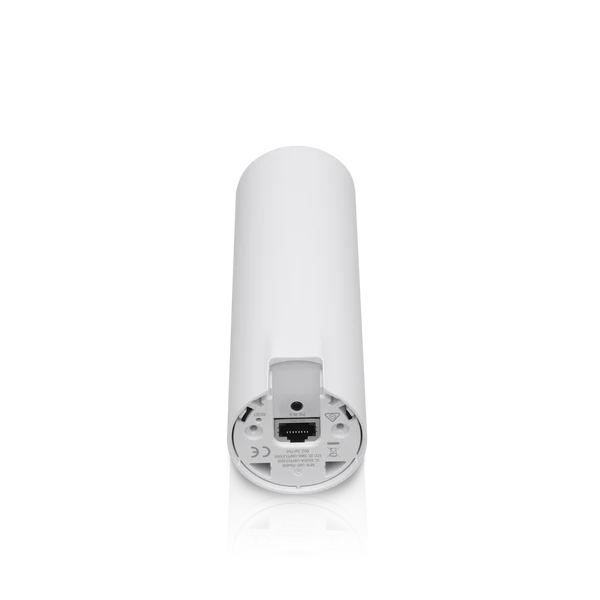

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| LED | System / Status |
| Power Method | 802.3af |
| Power Supply | 802.3af 48V, 0.32A Gigabit PoE Adapter |
| Max Power Consumption | 10.5W |
| Voltage Range | 44 - 57VDC |
| Operating Frequency | 2.4 GHz 5 GHz |
| Max TX Power EIRP | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| Throughput | 2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps |
| Antenna Gain | 2.4 GHz: 1.6 dBi 5 GHz: 4 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Mounting | Ceiling / Pole / Tabletop / Wall |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| WiFi Standard | 802.11ac Wave 2 |
| 5 GHz Throughput | 1.733 Gbps |
| 2.4 GHz Throughput | 300 Mbps |
| MIMO Technology | 4×4 MU-MIMO (5 GHz), 2×2 MIMO (2.4 GHz) |
| Interface | 1x 10/100/1000 Ethernet Port |
| Power Consumption | 10.5W |
| Dimensions | Ø 48.50 x 159.49 mm |
| Operating Temperature | -30 to 70°C |
