Ubiquiti USW-Industrial Layer 2 switch with (10) GbE RJ45 ports, including (8) 802.3bt PoE++ ports
Buy Ubiquiti USW-Industrial Layer 2 switch with (10) GbE RJ45 ports, including (8) 802.3bt PoE++ ports, Ubiquiti from Printer Bullet - Everything for office. Fa...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | (10) GbE RJ45 ports, including (8) 802.3bt PoE++ ports |
| PoE Supply | 430W total PoE supply |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Power Supply | AC/DC, Internal, 450W DC |
Product details
- (8) 802.3bt PoE++ ports
- (2) GbE RJ45 ports
- 430W total PoE supply
- Fanless, near-silent cooling
- Wide operating temperature range

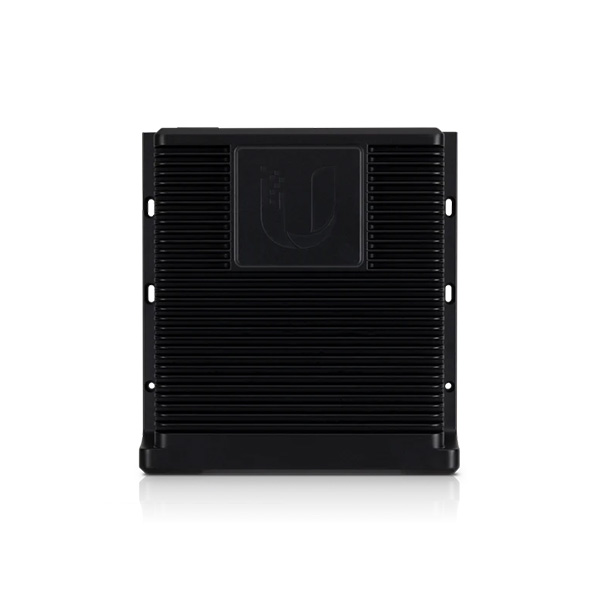

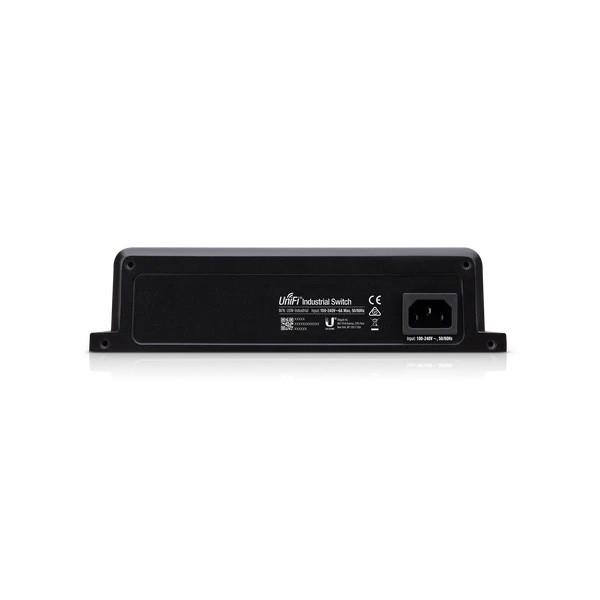

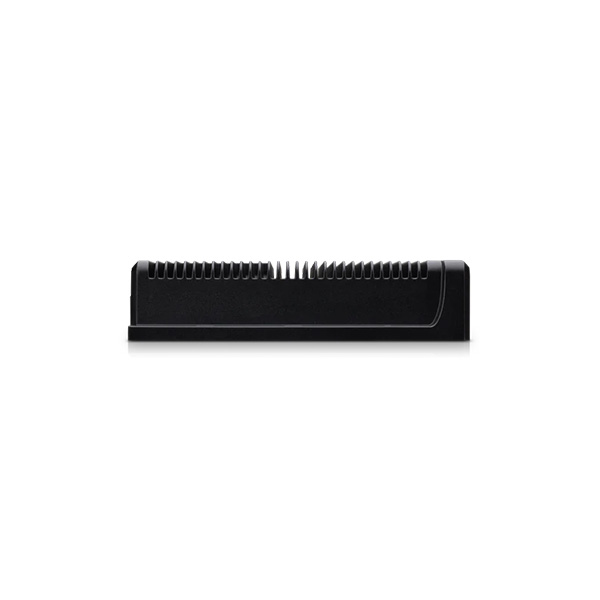

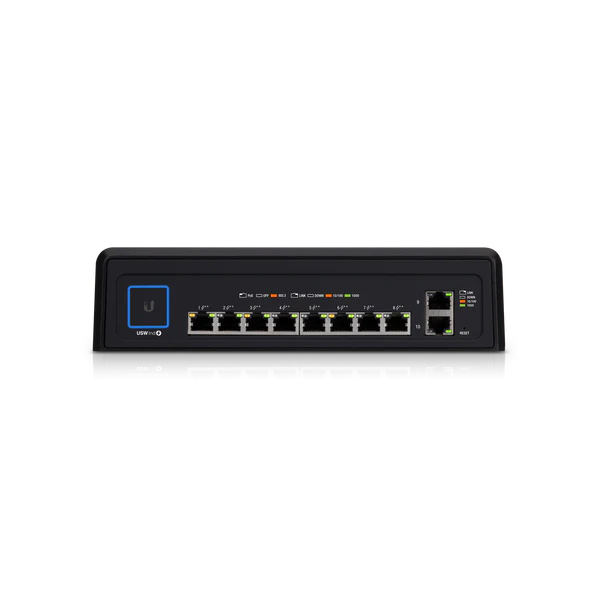

The Switch Industrial (USW Industrial) is a fully managed, fanless, Layer 2 switch with (10) GbE RJ45 ports, including (8) 802.3bt PoE++ ports, and a 430W total PoE supply, making it an ideal choice for powering UAP LED panels, Protect cameras, and access points. The USW Industrial can be mounted either horizontally or vertically in plenum spaces*, and its die-cast aluminum enclosure has a black, powder-coated finish that enhances its resistance to corrosion and extreme temperatures. This switch can be monitored or configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
*Plenum-rated cabling is required for use in plenum spaces.
Managed with the UAP Network application: Version 5.14.12 and later.
| USW-Industrial | |
|---|---|
| Dimensions | 254 x 235 x 60 mm (10 x 9.25 x 2.36") |
| Weight | 3.85 kg (8.49 lb) |
| Enclosure Characteristics | Die-Cast Aluminum (ADC12) with Black Powder Coated Finish |
| Interfaces | Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports, (2) 10/100/1000 RJ45 Ports Management: Ethernet In-Band |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 100 - 240 VAC, 50/60 Hz Universal Input |
| Power Supply | AC/DC, Internal, 450W DC |
| Supported Voltage Range | AC Input: 100 to 240VAC, Max. 6A |
| Max. Power Consumption (Excluding PoE Output) | 20W |
| LEDs | System: Status RJ45 Ports: PoE, Speed/Link/Activity |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC |
| PoE | |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE | 802.3bt 60W |
| Voltage Range 802.3 PoE Mode | 50-57V |
| Max. Total PoE Power Budget | 430W |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | (10) GbE RJ45 ports, including (8) 802.3bt PoE++ ports |
| PoE Supply | 430W total PoE supply |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Power Supply | AC/DC, Internal, 450W DC |
| Enclosure | Die-Cast Aluminum (ADC12) with Black Powder Coated Finish |
| Operating Temperature | -40 to 50° C (-40 to 122° F) |
| Dimensions | 254 x 235 x 60 mm (10 x 9.25 x 2.36") |
